The MS Roof Support is designed and engineered to support mechanical screens, solar equipment, HVAC units and anything requiring structural support on a wood framed building. The MS Roof Support connects to wood beams, blocking, or trusses. Spacing and height may be varied based on loading conditions. The MS Roof Support is available throughout the US.

Custom Sizes And Heights Available Upon Request

RAS-35-4 / RAS-675-4

The RAS-35-4 and RAS-675-4 anchor is pre-engineered, reducing engineering time, connects to a single beam, blocking, or one double truss, does not require a kicker or bracing, is height and slope adjustable, will soon be Code Approved, and reduces or eliminates scheduling delays.
  • RAS-35-4 Connects to a 3 1/2" beam or block
  • RAS-675-4 Connects to a double truss
  • Stocked locally with a 4' post
  • Custom height posts and connections available
  • Cut to height in the field
  • IAPMO Code Evaluation Report Pending
Contact Us

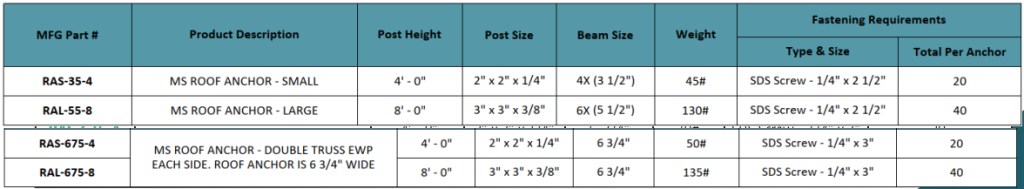

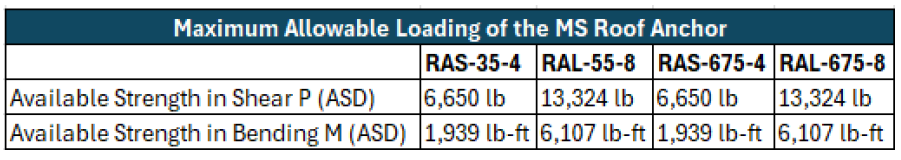

Technical Details
ms anchor mechanical screen post

RAL-55-8 / RAL-675-4

The RAL-55-8 and RAL-675-8 anchor is pre-engineered, reducing engineering time, connects toa single beam, block, or one double truss, does not require a kicker or bracing, is height and slope adjustable, will soon be Code Approved, and reduces or eliminates scheduling delays.
  • The RAL-675-8 connects to a 5 ½” beam or block.
  • The RAL-675-8 connects to a double truss.
  • Stocked locally with a 8' post
  • Custom height posts and connections available
  • Cut to height in the field
  • IAPMO Code Evaluation Report Pending
Contact Us
Technical Details

RAS-35-4

The RAS-35-4 mechanical screen anchor is pre-engineered, reducing engineering time, connects to a single beam or block, does not require a kicker or bracing, is height and slope adjustable, will soon be Code Approved, and reduces or eliminates scheduling delays.

  • Connects to a 3 1/2" beam or block
  • Stocked locally with a 4' post
  • Custom height posts and connections available
  • Cut to height in the field
  • IAPMO Code Evaluation Report Pending
Contact Us
ms anchor mechanical screen post

RAL-55-8

The RAL-55-8 mechanical screen anchor is pre-engineered, reducing engineering time, connects to a single beam or block, does not require a kicker or bracing, is height and slope adjustable, will soon be Code Approved, and reduces or eliminates scheduling delays.

  • Connects to a 5 1/2" beam or block
  • Stocked locally with a 8' post
  • Custom height posts and connections available
  • Cut to height in the field
  • IAPMO Code Evaluation Report Pending
Contact Us
